Enhanced TDS
Identification & Functionality
- Chemical Family
- CASE Ingredients Functions
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Product Features
- Cardolite® Lite 2100 improve bond strength and flexibility.
- Cardolite® Lite 2100 show slightly higher Tg than other hydrocarbons.
- Mechanical strengths of Cardolite® Lite 2100 are lower than other hydrocarbons.
Applications & Uses
- Markets
- Applications
- Compatible Substrates & Surfaces
- Use Level
- max. 30% (resin)
Properties
- Color (Properties)
- Physical Form
- Typical Properties
Value Units Test Method / Conditions Color 4 Gardner ASTM D1544 Viscosity (at 25°C) 450 - 750 cPs ASTM D2196 Solid Content max. 1 % ASTM D2369-98 - Cured Properties
Value Units Test Method / Conditions Lap Shear Strength (Steel) (at 25°C/16-24h+100°C/2h)* 23.9 Mpa - Tensile Strength (at 25°C/16-24h+100°C/2h)* 63 MPa - Tensile Modulus (at 25°C/16-24h+100°C/2h)* 2764.1 MPa - Elongation At Break (at 25°C/16-24h+100°C/2h)* 4.7 % - Flexural Strength (at 25°C/16-24h+100°C/2h)* 109.6 MPa - Flexural Modulus (at 25°C/16-24h+100°C/2h)* 2680.2 MPa - Glass Transition Temperature (at 25°C/16-24h+100°C/2h)* 91.8 °C - - Note
*Epon828:LITE2100:TETA = 80:20:10.23
Regulatory & Compliance
- Chemical Inventories
Technical Details & Test Data

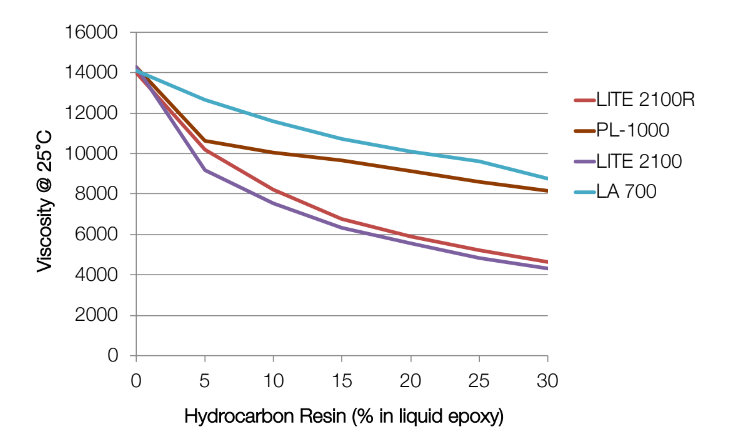

- Dilution Curve
- LITE 2100 show better dilution power with liquid epoxy than other hydrocarbon resins.
Packaging & Availability
- Supplied by
